The Pallet Transport Robot (PTR) is a smart and advanced machine called an Autonomous Guided Vehicle (AGV). It helps make warehouse work easier by moving pallets on its own—no need for a forklift.
In addition, it connects with warehouse management systems (WMS) and uses smart controls to move around safely and accurately.
As a result, PTRs help boost warehouse efficiency, improve safety, and increase overall productivity.
Minimizes reliance on forklift drivers and manual labor.
Operates 24/7 with precision, reducing downtime.
Eliminates forklift-related accidents and improves workplace safety.
Works within high-density storage environments, reducing wasted space.
Ensures faster material flow and real-time inventory tracking when integrated with WMS.
Pallet Transport Robot moves pallets seamlessly between storage areas, production lines, and shipping zones.
Works with Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS) to optimize routes and tasks.
Equipped with sensors to detect obstacles, ensuring safe and efficient navigation.
Capable of forward, backward, and lateral movements, allowing smooth operation in tight warehouse spaces.
Minimizes human intervention by autonomously placing and retrieving pallets from racks.
| Model | PTR - HL | PTR - HCL | |
|---|---|---|---|
|
Specifications |
Model Type |
Normal Temperature Standard |
Cold Temperature Standard |
|
Equipment Net Weight |
260KG |
260KG |
|
|
Rated Load Capacity |
600kg |
600kg |
|
|
Overall Dimensions |
1135 * 980 * 126 mm |
1135 * 980 * 126 mm |
|
|
Performance |
Driving Speed |
1.2 m/s |
1.2 m/s |
|
Acceleration |
0.3 m/s² |
0.3 m/s² |
|
|
LIfting Time |
3 s |
3 s |
|
|
Switching Time |
3 s |
3 s |
|
|
Positioning Accuracy |
±2 mm |
±2 mm |
|
|
Battery Specifications |
|||
|
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|
|
Battery Capacity |
≥ 2.8 kW·h |
≥ 2.8 kW·h |
|
|
Operation Hours |
8 h |
6 h |
|
|
Charging Time |
≤ 2 h |
≤ 2 h |
|
|
Cycle Charge/ Discharge Times |
2000 cycles |
2000 cycles |
|
|
Charging Method |
Automatic Charging |
Automatic Charging |
|
|
Operating Temperature |
-10 ~ 45 ℃ |
-25 ~ 0 ℃ |
|
|
Battery Level Indicator |
Yes |
Yes |
|
|
Safety Protection |
Laser Obstacle Avoidance |
Yes |
Yes |
|
Smoke Detection |
N/A |
N/A |
|
|
Temperature Detection |
N/A |
N/A |
|
|
Emergency Stop Button |
Yes |
Yes |
|
|
Pallet Detection |
Yes |
Yes |
|
|
Audible Alarm |
Yes |
Yes |
|
**Due to supply chain and production batch reasons, various parameters may be adjusted. Please consult for details.

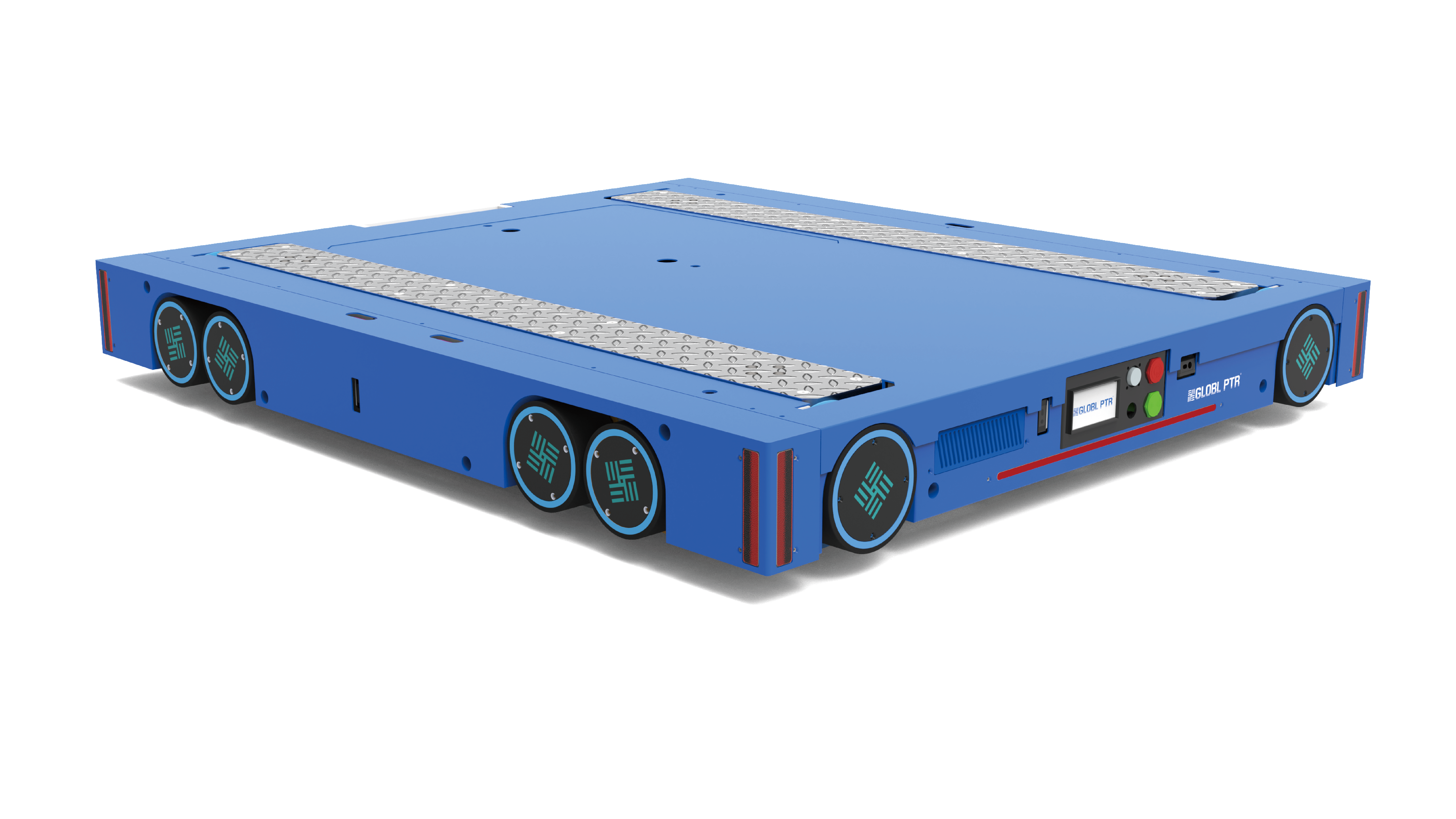

| Model | PTR - HS | PTR - HCS | |
|---|---|---|---|
|
Specifications |
Model Type |
Normal Temperature Standard |
Cold Temperature Standard |
|
Equipment Net Weight |
300KG |
310KG |
|
|
Rated Load Capacity |
1200kg |
1200kg |
|
|
Overall Dimensions |
1135 * 980 * 126 mm |
1135 * 980 * 126 mm |
|
|
Performance |
Driving Speed |
1.2 m/s |
1.2 m/s |
|
Acceleration |
0.3 m/s² |
0.3 m/s² |
|
|
LIfting Time |
3 s |
3 s |
|
|
Switching Time |
3 s |
3 s |
|
|
Positioning Accuracy |
±2 mm |
±2 mm |
|
|
Battery Specifications |
|||
|
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|
|
Battery Capacity |
≥ 2.8 kW·h |
≥ 2.8 kW·h |
|
|
Operation Hours |
8 h |
6 h |
|
|
Charging Time |
≤ 2 h |
≤ 2 h |
|
|
Cycle Charge/ Discharge Times |
2000 cycles |
2000 cycles |
|
|
Charging Method |
Automatic Charging |
Automatic Charging |
|
|
Operating Temperature |
-10 ~ 45 ℃ |
-25 ~ 0 ℃ |
|
|
Battery Level Indicator |
Yes |
Yes |
|
|
Safety Protection |
Laser Obstacle Avoidance |
Yes |
Yes |
|
Smoke Detection |
N/A |
N/A |
|
|
Temperature Detection |
N/A |
N/A |
|
|
Emergency Stop Button |
Yes |
Yes |
|
|
Pallet Detection |
Yes |
Yes |
|
|
Audible Alarm |
Yes |
Yes |
|
**Due to supply chain and production batch reasons, various parameters may be adjusted. Please consult for details.

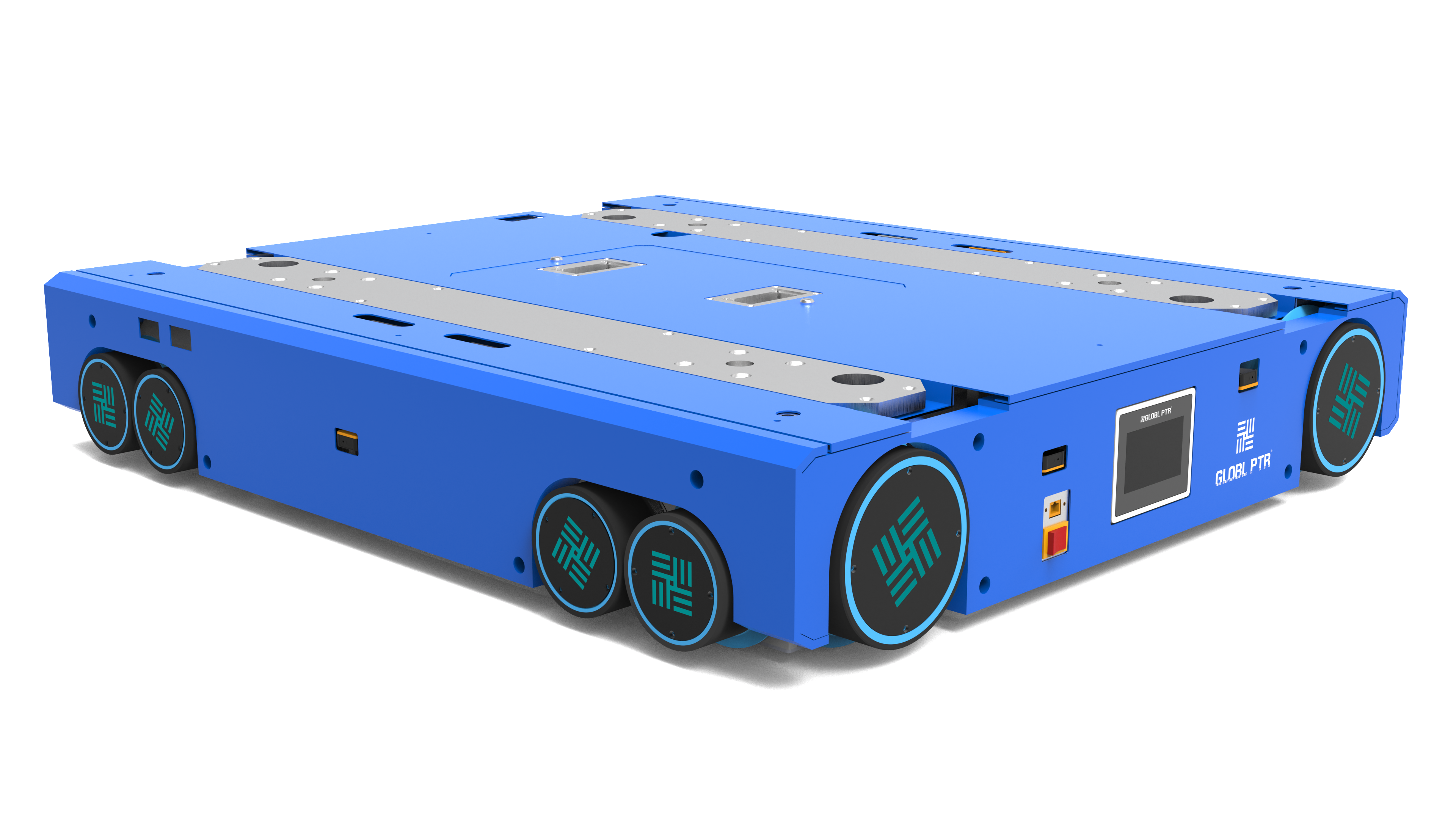

| Model | PTR - HW | PTR - HCW | |
|---|---|---|---|
|
Specifications |
Model Type |
Normal Temperature Standard |
Cold Temperature Standard |
|
Equipment Net Weight |
450KG |
450KG |
|
|
Rated Load Capacity |
1200 – 2200kg |
1200 – 2000kg |
|
|
Overall Dimensions |
1135 * 980 * 180 mm |
1135 * 980 * 180 mm |
|
|
Performance |
Driving Speed |
1.2 m/s |
1.2 m/s |
|
Acceleration |
0.3 m/s² |
0.3 m/s² |
|
|
LIfting Time |
4 s |
4 s |
|
|
Switching Time |
4 s |
4 s |
|
|
Positioning Accuracy |
±2 mm |
±2 mm |
|
|
Battery Specifications |
|||
|
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|
|
Battery Capacity |
≥ 2.3 kW·h |
≥ 2.3 kW·h |
|
|
Operation Hours |
6 – 8 h |
5 – 7 h |
|
|
Charging Time |
≤ 3 h |
≤ 3 h |
|
|
Cycle Charge/ Discharge Times |
2000 cycles |
2000 cycles |
|
|
Charging Method |
Automatic Charging |
Automatic Charging |
|
|
Operating Temperature |
-10 ~ 45 ℃ |
-25 ~ 0 ℃ |
|
|
Battery Level Indicator |
Yes |
Yes |
|
|
Safety Protection |
Laser Obstacle Avoidance |
Yes |
Yes |
|
Smoke Detection |
N/A |
N/A |
|
|
Temperature Detection |
N/A |
N/A |
|
|
Emergency Stop Button |
Yes |
Yes |
|
|
Pallet Detection |
Yes |
Yes |
|
|
Audible Alarm |
Yes |
Yes |
|
**Due to supply chain and production batch reasons, various parameters may be adjusted. Please consult for details.
Used in conjunction with inbound and outbound logistics equipment, achieving automation and stability in the transportation process.
Configurable based on actual conditions, available in single-direction, bi-directional, and three-directional lift models.
Utilizes gear and rack transmission for vertical movement, enhancing safety.
Driven by a servo motor, reducing settling and ensuring positioning accuracy within 2mm.
